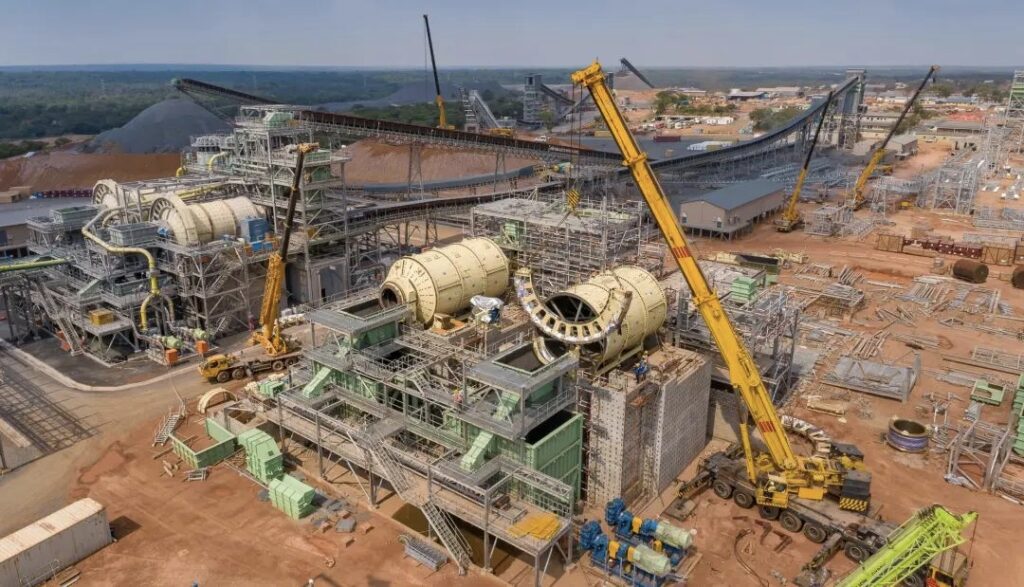

In the iron ore processing “crushing–grinding” stage, the ball mill typically accounts for 60%–70% of the total energy consumption of the entire production line. The particle size of crushed products is the core factor that determines ball mill energy efficiency.

Data shows:

• For every 1mm reduction in the feed size of the ball mill, throughput can increase by 3%–5%.
• Power consumption per ton of ore can decrease by 2–3 kWh.

This article explains how to achieve precise particle size control through optimized equipment configuration and process parameters, ultimately reducing ball mill load and lowering energy consumption.

1. Why Does Crushing Particle Size Determine Ball Mill Energy Consumption?

The purpose of a ball mill is to grind crushed ore (usually 5–20mm) down to below 0.074mm (200 mesh) for mineral liberation. According to the Bond Work Index principle, the larger the feed size, the more grinding work is required to reach the target size. This impacts energy consumption in two ways:

• Grinding Efficiency: Oversized particles (>25mm) force the ball mill to consume more energy, while also causing over-grinding of finer particles—wasting energy.
• Media Wear: Coarse particles accelerate wear of steel balls and liners, increasing replacement costs and altering media size, which indirectly raises energy consumption.

2. Equipment Configuration: Building a “Graded Crushing + Precise Control” System

To stabilize particle size, a three-stage crushing system (primary–secondary–tertiary) should be configured according to ore hardness (magnetite 5.5–6.5, hematite 5.0–6.0 Mohs) and production capacity. Each stage directly affects final particle size.

(1) Primary Crushing: Control the “Feed Size”

• Objective: Reduce run-of-mine ore (1–2m) to 100–200mm to prevent blockages in secondary crushing.
• Recommended Equipment:
  • Large-scale: Jaw Crusher (PE-1200×1500), deep crushing chamber (280–320mm), capacity 400–800 t/h.
  • Small-scale (<200 t/h): PE-750×1060, balancing efficiency and cost.
• Key Parameters:
  • Discharge opening should match secondary crusher feed limits (e.g., 180–200mm if cone crusher max feed = 250mm).
  • Eccentric shaft speed: 250–300 r/min.

(2) Secondary Crushing: Ensure “Transition Size”

• Objective: Reduce 100–200mm ore to 30–80mm, easing tertiary crushing load.
• Recommended Equipment:
  • Hard ores (e.g., hematite): Single-cylinder hydraulic cone crusher (SC1600), laminated crushing, discharge 20–50mm, capacity 300–600 t/h.
  • Medium ores (e.g., magnetite): Impact crusher (PF-1315), good grain shape, efficient for uniform size.
• Optimization:
  • Cone crusher: keep chamber filled to 80%–90%.
  • Impact crusher: hammer gap set at 45–50mm for 50mm target size.

(3) Tertiary Crushing: Deliver Final Feed for Ball Mill

• Objective: Reduce 30–80mm ore to 5–20mm, matching ball mill feed size (optimal: 5–15mm).
• Recommended Equipment:
  • Large-scale: Multi-cylinder hydraulic cone crusher (MC2000), high-frequency crushing (300–350 r/min), discharge precision ±1mm, capacity 500–1000 t/h.
  • Small/medium: Impact crusher (VSI6X1145), suitable for brittle iron ore, but requires wear-resistant parts (high-chromium cast iron).
• Key Parameters:
  • Discharge set according to ball mill type (e.g., Φ3.2×13m ball mill → discharge 10–12mm).
  • Adopt closed-circuit with vibrating screen to recycle oversized particles (>15mm).

3. Auxiliary Systems: Screening and Intelligent Control for Stability

(1) Screening Equipment

• Purpose: Separate oversized particles and guarantee uniform feed.
• Recommended:
  • High-frequency vibrating screen (ZSG2060), double-layer screen (15mm upper, 10mm lower).
  • For wet ore (>8% moisture): Banana screen (TS1536), inclined design (20°–25°), screening efficiency ≥90%.
• Key Settings:
  • Frequency 20–25 Hz, amplitude 6–8mm.
  • Polyurethane screen mesh for durability.

(2) Intelligent Control System

• Real-time Monitoring: Laser particle analyzer at screen outlet.
• Load Coordination: Adjust discharge opening and feed rate when ball mill load exceeds 110%.
• Fault Alarm: Sensors monitor bearing temperature (>75℃) and vibration to prevent failures.

4. Key Takeaway

Iron ore crushing product size must precisely match ball mill feed requirements. Too fine = higher crushing energy cost; too coarse = higher ball mill energy consumption.

By implementing a three-stage crushing system + screening + intelligent control, operators can maintain product size in the optimal range for ball mill feeding, reducing ball mill energy consumption by up to 20%, while improving overall production efficiency.
